Ultrasonic Thickness Gauges

Digital Ultrasonic Thickness Gauge

Ultrasonic thickness gauge measures the round trip time of the ultrasound sent by the probe in thickness sample. The microcomputer converts this time into thickness or velocity readings displayed on the LCD. This is one of our first products which we have been manufacturing since 1976. We keep updating our product line as per industry requirements, the current product line is our latest iteration.

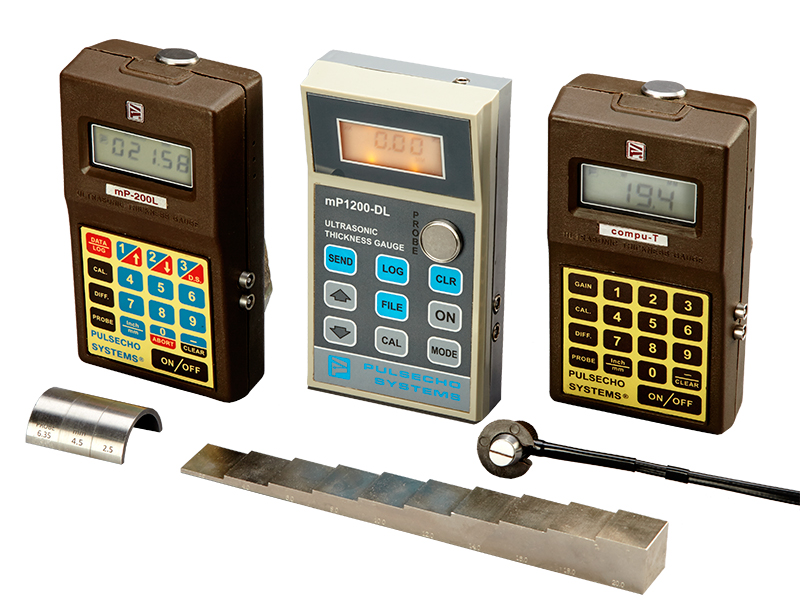

We have 3 models of ultrasonic thickness gauges, all have auto probe setting and direct entry of thickness / velocity for calibration, thus eliminating the need for having samples of various materials.

Download Brochure
Technical Details
Compu-T mP-200L mP-1200 DL
Frequency (MHz) 2.5 2.5 and 5 2.5 and 5
Range (mm) 1.5 to 99.9 1.5 to 199.9 1.5 to 200
Probes – Optional mPSC-2, mPTH-2 mPSC-5, mPTH-2, mP-200 mPL-210, m-PLH-2
Resolution (mm) 0.1 0.1, 0.01 0.1, 0.01, 0.001, 0.01 Inch
Accuracy ±0.1 mm ±0.1 mm OR ± 0.03 mm ± 3 counts
Output - mPrint or Centronics 8 mPrint or through RS-2/DTU to PC
Logger (No. of Readings) - 200 in 1 file 1200 in 1 to 99 files
LCD Display 3 ½ Digits with legends 5 Digits with legends 4 Digits with special legends and backlight
Battery 4 Penlite AA 3 Penlite AA
Battery Life (Hours) 30 – 40 50 – 60



Probes Frequency (MHz) Thickness Range (mm) Job OD (mm) Temperature °C / Couplant
mPSS-2 2.5 1.5 – 100 > 40 -25°C to 70° C / oil, Glycerine etc.
mpSC-2 2.5 1.5 – 15 25 - 40
mPSS-5 5 1.5 – 60 > 40
mPSC-5 5 1.5 – 15 25 – 40
mP-200 2.5 10 – 200 > 80
mpL-510 5 1.5 - 60 > 25
mPL-210 2.5 2 – 100 > 50
mPTH-2 2.5 2 – 25 > 80 0°C to 250°C / CTH (Special high temperature couplant)
mPLH-510 5 2 – 25 > 80
