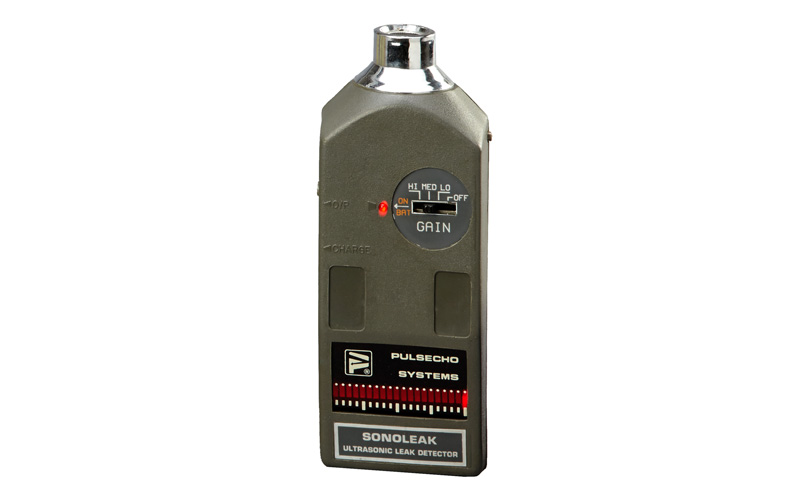

SonoLeak is an ultrasonic leak detector which can detect leaks of any gas. It detects leaks under pressure or vacuum by detecting the ultrasound generated at the site of the leak (generated due to molecular collision). An additional accessory can be used for pressure-less systems.
It is an efficient and safe replacement for ‘Soap Bubble’ and ‘Flame Test’ methods in pressure and vacuum systems respectively. Typically turbulent leaks as low as 0.01 atm-cc / sec can be detected.
SonoLeak | SonoEmitter (with SonoLeak) | |
---|---|---|
Application Areas |
Maintenance, leak detection & leak testing of:
|
In conjunction with SonoLeak:
|
Gas Detected | Leaks of any gas | NA |
Sensitivity | Air leak at 5 PSI through 0.01” orifice from a distance of 30 to 40 feet | NA |
Display | Array of LEDs | On / Off LED |
Sound | Detector output through earphones | Ultrasound at 40KHz |
Operating Temperature | 0° C to 50° C | |
Battery | 5 Penlite (AA) Cells giving 80 – 100 operating hours | Standard 9V battery giving 25 – 30 operating hours |
Dimensions H x W x D(in mm) |
130 x 63 x 37 | 70 x 50 x 40 |
Weight (with battery) | 300 grams | 100 grams |
