Radiation Detectors, Monitors & Alarms

Wide Range Telescopic Survey Meter

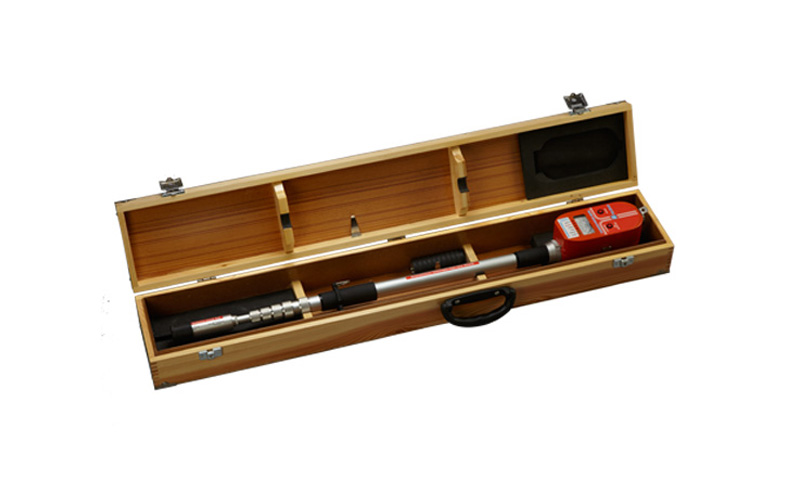

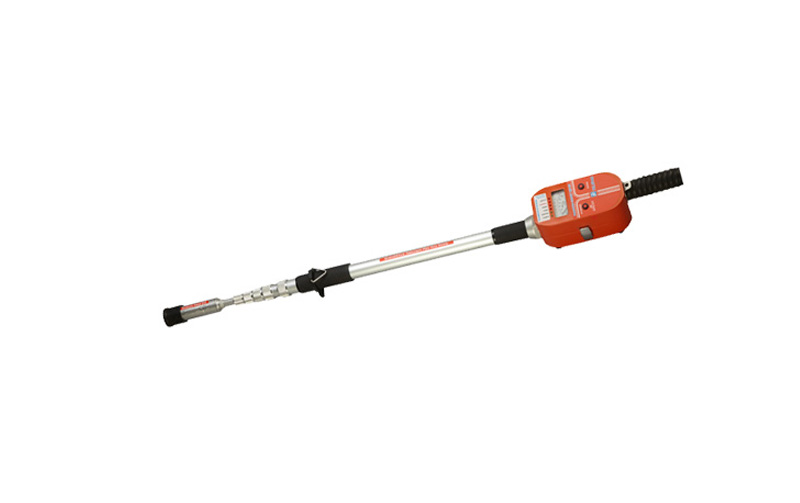

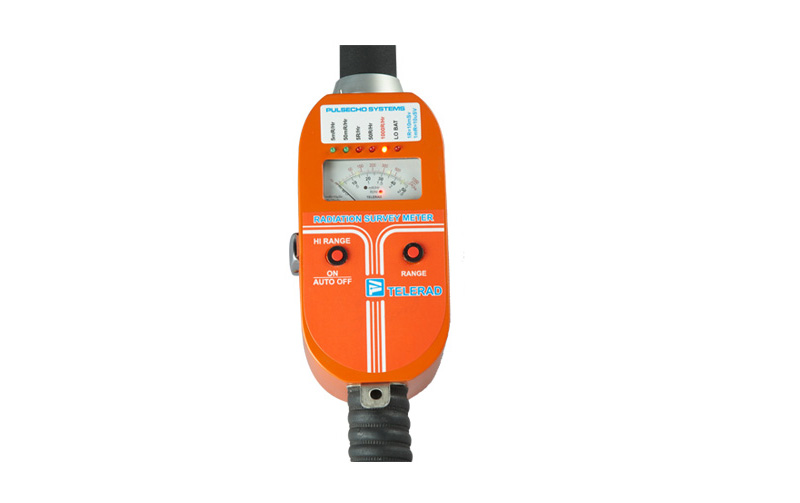

TeleRad: Wide Range Telescopic Radiation Detector

TeleRad is a portable battery operated radiation survey meter. It provides a fast and accurate measure of X, GAMMA AND BETA (OPTIONAL) RADIATION. It covers a wide range from a few mR/h TO 1000 R/h.

TeleRad has a telescopic boom that extends upto 4 Meters to take the detection head away from the operator. This reduces the exposure of the operator. It can measure X, GAMMA AND BETA RADIATIONS. The detector head houses two GM detectors, one is for lower ranges (2.5 mR/h, 50 mR/h) and the other is for high ranges (2.5R/h, 50 R/h and 1000 R/h)

Download Brochure
Technical Details
Detector
Application Areas
  • Detecting radiation sources
  • Security & Surveillance
Radiation Detected Gamma, X-Ray & Beta (Optional)
Detector Two Externally mounted halogen quenched pancake GM detectors (712 for low range & Beta) / 716 for high range)
Display Analog Meter
Analog Meter Piezo Buzzer
Measuring Ranges (1 µSv/h = 0.1 mR/h) (Select One) Roentgens & Count Per Second (CPS) Sievert & Count Per Second (CPS)
0-2.5 mR/h (900 CPS)
0 – 50 mR/h (0 – 45 CPS)
0 – 2.5 R/h
0 – 50 R/h
0 – 1000 R/h
0 – 25 µSv/h (900 CPS)
0 - 500 µSv/h (0 – 45 CPS)
0 – 25 mSv/h
0 - 500 mSv/h
0 – 10 Sv/h
Energy Response From 80 keV to 200 keV + 15%, -25%
From 0.2 MeV to 2 MeV + 10%
Accuracy ±15% when calibrated with CO-60
Operating Temp 00C to 00C
EHT 500V (nominal) Regulated
Battery 5 penlite dry cells (~20 hours continuous, ~60 hours intermittent)
Dimensions (in mm) 90 x 90 x 180 +
Telescopic Probe (95 cm closed, 400 cm open)
Weight (with battery) 2.7 Kg
Download Brochure
