Radiation Detectors, Monitors & Alarms

Personal Dosimeters

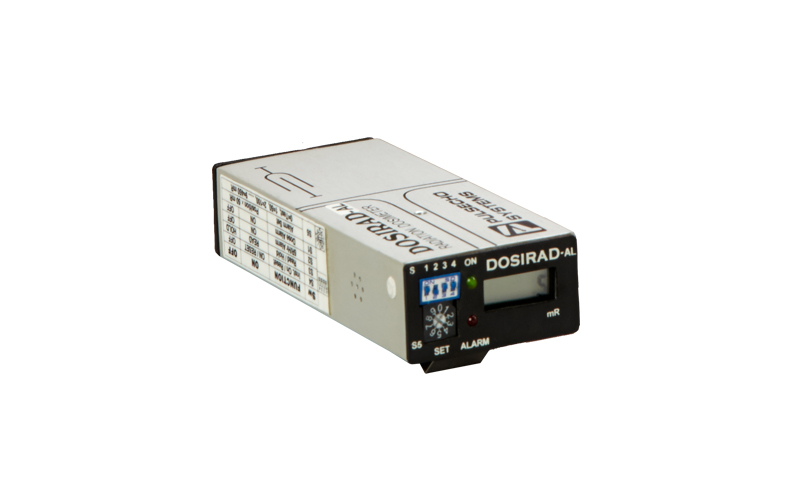

DosiRad: Dosimeters for personal dosimetry

DosiRad is a pocket sized personal dosimeter for measuring cumulative dose of X-Ray and Gamma ray radiation. They are used by radiation workers to monitor radiation dose incurred by them. We have two models in DosiRad: DosiRad Standard and DosiRad AL. DosiRad AL comes with a settable audible alarm.



Download Brochure
Technical Details
DosiRad Std DosiRad AL
Application Areas Application Areas
Radiation Detected Gamma Rays and X-Rays
Detector Miniature halogen quenched internally mounted GM Tube shielded for energy correction
Energy Range 50 keV – 1.5 MeV
Display 6 digits digital LCD
Sound Piezo Buzzer Chirps
  • Piezo Buzzer Chirps
  • Settable Alarm
  • High Radiation Alarm – 20 mSv/ hr
Measuring Ranges in Roentgens 0.1 mR - 99999.9 mR
in upto 20 R/h field
Measuring Ranges in Sievert 1 µSv - 999999 µSv
in upto 20 mSv/h field
Sensitivity 1 count per µSv OR 0.1 mR
Accuracy +/- 20%
Operating Temperature 20°C to 55°C
EHT
Battery Standard 9V Battery (Optional Rechargeable Battery Available)
Dimensions
H x W x D
(in mm)
Standard 9V Battery (Optional Rechargeable Battery Available)
Dimensions
H x W x D
(in mm)
50 x 23 x 115
Weight (with battery) 140 Gms
Download Brochure

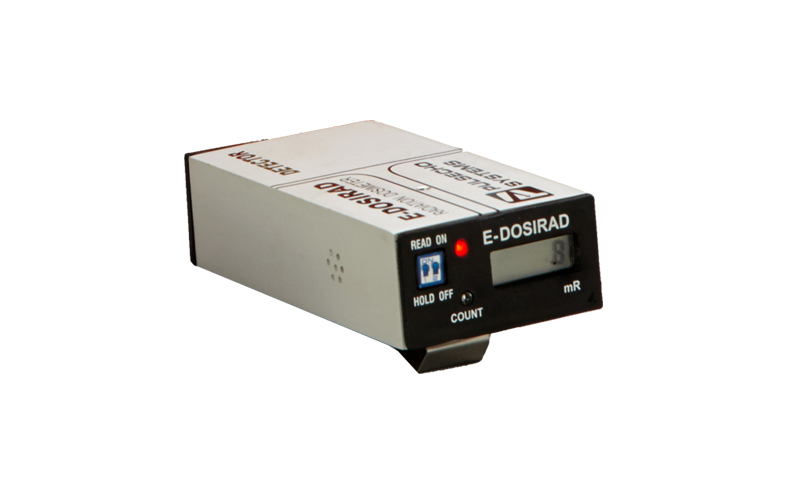

E-DosiRad: Dosimeters for personal dosimetry

E-DosiRad is a lightweight and compact pocket sized personal dosimeter for measuring cumulative dose of X-Ray and Gamma ray radiation. They are used by radiation workers to monitor radiation dose incurred by them. We have two models in E-DosiRad: E-DosiRad Standard and E-DosiRad SSD. E-DosiRad SSD comes with a solid state detector.

Download Brochure
Technical Details
E-DosiRad Std E-DosiRad SSD
Application Areas Personal Dosimetry
Radiation Detected Gamma Rays and X-Rays
Detector Miniature halogen quenched internally
mounted GM Tube shielded for energy correction
Internally mounted Solid State Detector
Energy Range 100 keV – 1.3 MeV
Display 6 digits digital LCD
Sound
  • Piezo Buzzer Chirps
  • Continuous buzzer for low battery indication
Measuring Range 0 to 999999 μSv
in upto 2 mSv/h field
Sensitivity 1 count per µSv
Accuracy +/- 20%
Operating Temperature 0°C to 50°C
Battery 3 volt Lithium CR2450 / CR2477 battery
Dimensions
H x W x D
(in mm)
25 X 30 X 110
Weight (with battery) 60 Gms
Download Brochure
